RED KOMODO EXPANDER MODULE 科莫多拓展套件 TC口 Genlock口 GPI口
￥ 4999.00元
相關推薦
7999.00
RED V-RAPTOR 迅猛龍肩托 快裝板平臺 QUICK RELEASE PLATFORM PACK SKU 790-0692
2699.00
RED PRO CFEXPRESS 1TB 存儲卡 CEB原裝卡 SKU 750-0102
16999.00
RED PRO CFEXPRESS 4TB CEB 存儲卡 閃傳 內存原裝 SKU 750-0101
23500.00
RED DSMC3 RED TOUCH 7.0" 7英寸監視器 SKU 730-0029 1300nits 322ppi
16999.00
RED PRO CFEXPRESS 1.3TB 存儲卡 閃存 CEB 原廠 原裝 SKU 750-0096

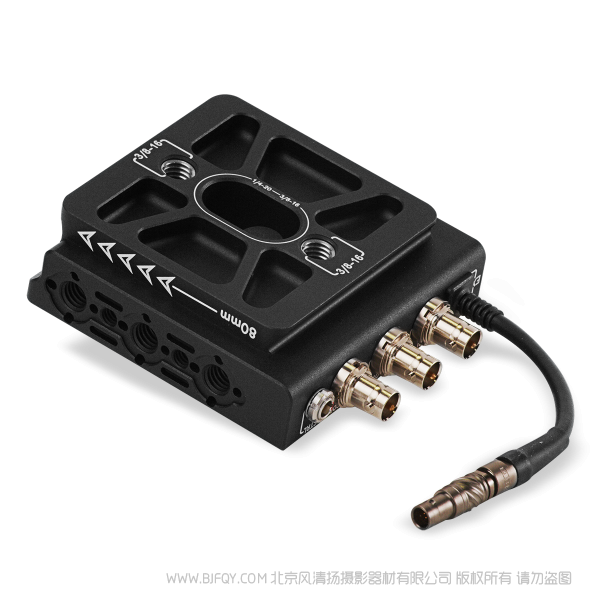

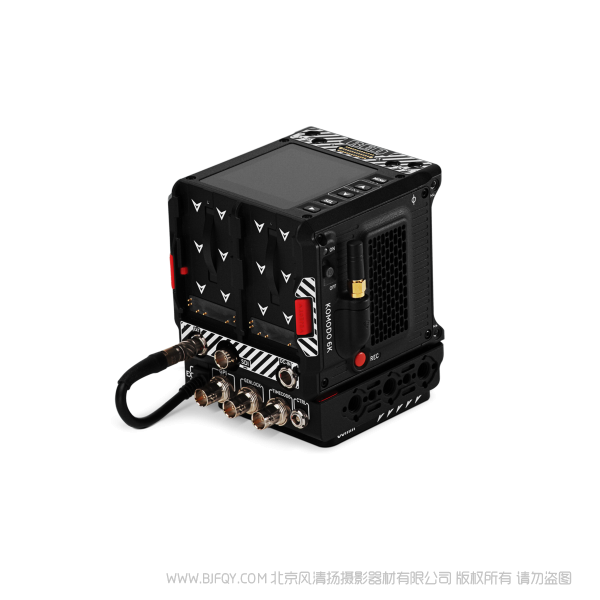

The KOMODO? Expander Module is designed to support professional shooting configurations. With options for video and communication connections, including Genlock (BNC), GPI (BNC), Timecode in (BNC) and CTRL (4-pin). The KOMODO Expander Module creates the flexibility to support a vast array of options when it comes to how users will rig their KOMODO.
Constructed from lightweight and durable aluminum alloy, the module provides a reliable option for multiple rigging solutions with multiple ?-20 and 3/8-16 mounting points and ARRI-style locating holes along with an integrated quick-release plate.?
KOMODO?擴展模塊專為支持專業拍攝配置而設計。具有視頻和通信連接選項，包括Genlock (BNC)， GPI (BNC)， Timecode in (BNC)和CTRL(4引腳)。該科莫多擴展模塊創建的靈活性，以支持選項的巨大陣列，當涉及到用戶將如何操縱他們的科莫多。
該模塊由輕質耐用的鋁合金構成，為多個索具解決方案提供了可靠的選擇，具有多個?-20和3/8-16安裝點和ari式定位孔以及集成的快速釋放板。
DIMENSIONS 長寬高 | Height: 1.25 in (32 mm)? Width: 3.75 in (95 mm)? Depth: 4.25 in (108 mm)? |
|---|---|
WEIGHT? 重量 | Approximately 0.9 lbs (408 g)?? |
MATERIALS? 材質 | Aluminum? |
MOUNTING TO KOMODO? 固定螺孔 | 1x ?-20 and 1x 3/8-16 captive mounting screw? |
CONNECTION TO KOMODO? 通信針腳 | 9-pin EXTENSION port?? |

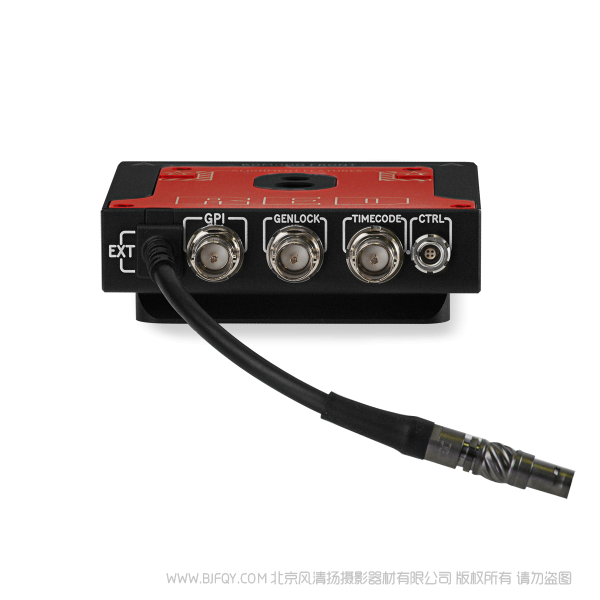

CONNECTORS? 拓展接口 | GPI (BNC)? Genlock (BNC)? Timecode In (BNC)? CTRL (Tally OUT /RS-232 Rx and Tx) (4-Pin 00)? |

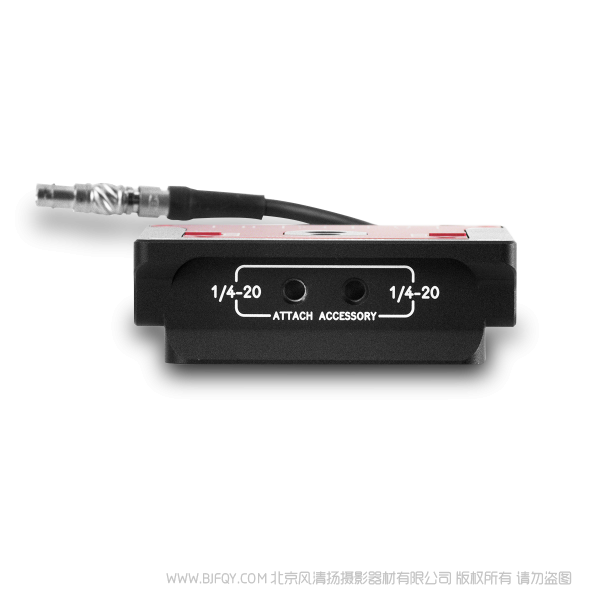

ARM MOUNTING? 拓展螺絲孔 | 6x ?-20 and 8x 3/8-16 mounting holes with? |
INTEGRATED QUICK RELEASE PLATE ??支持快裝板 | Compatible with the GDU 80mm Touch N Go? |
OPERATING TEMPERATURE? 工作溫度 | 0°C to 40°C (32°F to 104°F)?? |
STORAGE TEMPERATURE? 存儲溫度 | –20°C to 50°C (–4°F to 122°F)?? |
OPERATING HUMIDITY? 工作濕度 | 0% to 85%, non-condensing? |
STORAGE HUMIDITY? 存儲濕度 | 0% to 85%, non-condensing? |
Tech specs reflect both current and projected information. Everything is subject to change.
